SNAPBACK ELIMINATION
When you flick your stick and let go, it shouldn't bounce. Lost a ranked match because your aim drifted 10 pixels left after a flick shot? You are a victim of Elastic Overshoot. Here is the engineering fix.
Elastic Overshoot Test
Is your stick bouncing back too hard? Use the Snapback Analyzer to measure the exact percentage of recoil overshoot.
What is Snapback (Overshoot)?
Analog stick snapback occurs when the spring mechanism returns to center with so much kinetic energy that it bypasses the neutral zone and briefly registers an input in the opposite direction. In FPS games, this manifests as your aim 'bouncing' back after a quick turn.
Why You Miss Your Shots
In high-TTK games like Apex Legends or Halo, tracking is everything. Snapback introduces a random variable to your aim. After a flick shot, your crosshair doesn't stop where you want—it "bounces" in the opposite direction for 50-100ms.
The "Whiff" Mechanic
You flick right to hit a target. You release the stick. The stick bounces left. The game registers a "Left" input. Your character micro-strafes left, throwing off your recoil smoothing. You lose the 1v1.
Rotational Aim Assist
Snapback confuses the rotational aim assist algorithm. The sudden opposite input breaks the "bubble," causing the magnet to disengage right when you need it most.
The Physics of Failure
Physics check: Your joystick is just a mass on a cheap spring. When you release it from the edge (100% deflection), the spring potential energy converts to kinetic energy. Without enough friction (damping), the stick flies past the center (0%) and hits -15% or -20% before settling.
OEM modules (even on £200 controllers) are mass-produced with loose tolerances. They sacrifice friction for "smoothness," directly causing snapback.
[Visualizer: Waveform Comparison]
Sharp rebound past center line
Smooth exponential decay to zero

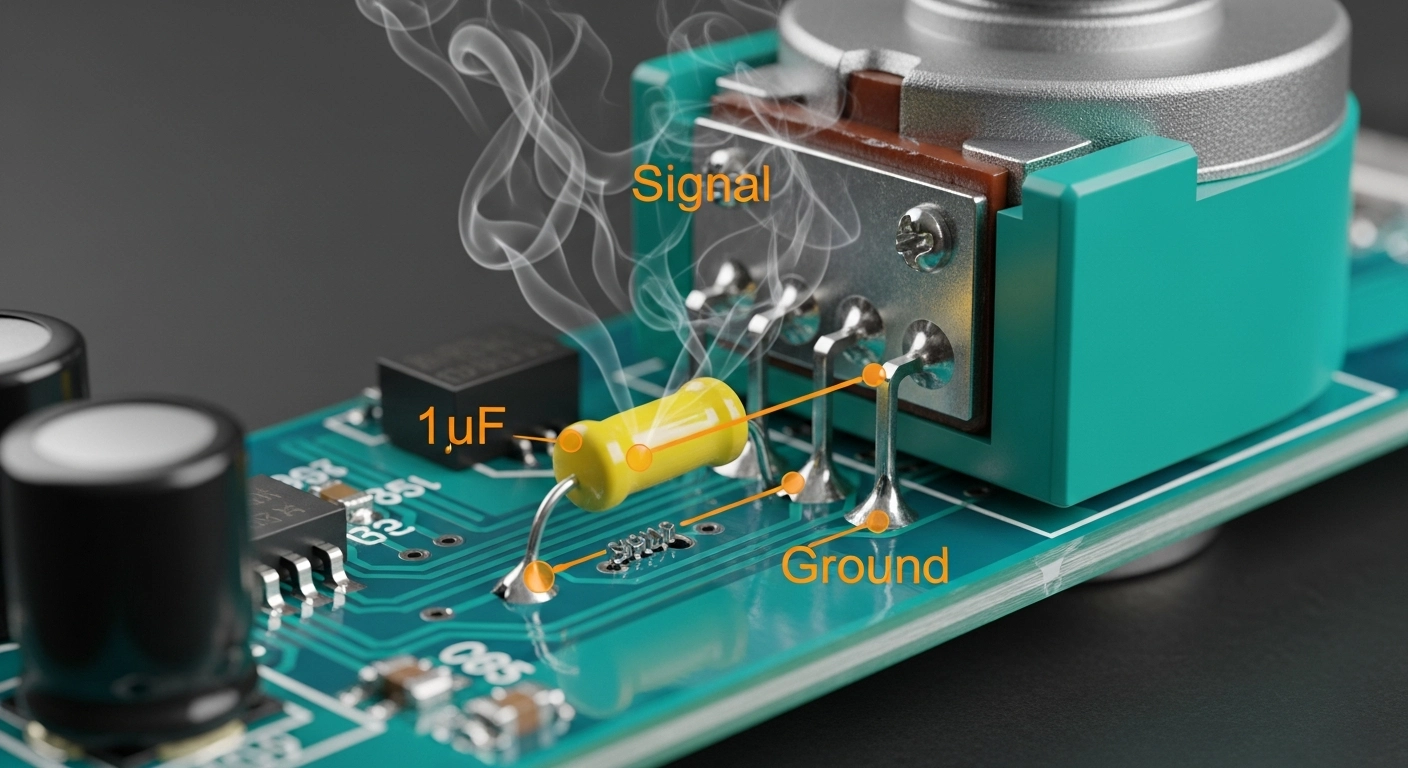

Solution 1: The Capacitor Mod (Hardware)
By soldering a capacitor between the Signal and Ground pins of your potentiometer, you create a Low-Pass RC Filter. The massive change in voltage (the snapback) is "absorbed" by the capacitor charging up, effectively flattening the spike.
Tools of the Trade
Component Selection
Mild filtering. Minimal input lag added. Good for minor snapback.
The gold standard. Completely eliminates snapback on worn modules. Adds ~1-2ms latency (imperceptible to most).
Too aggressive. Will make your stick feel "floaty" and add noticeable delay. Only for severely broken units.

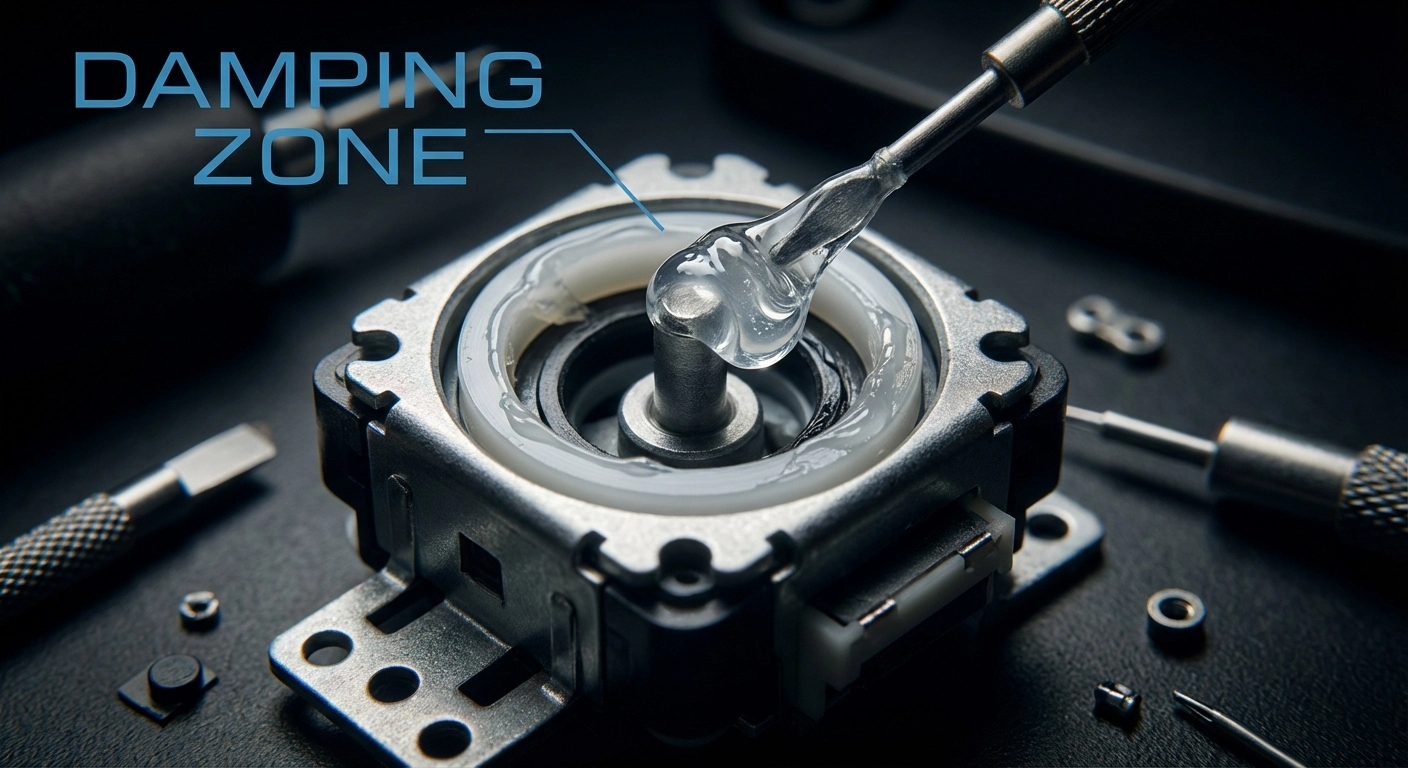

Solution 2: Mechanical Damping (Grease)
If soldering isn't an option, you can attack the physics directly. By adding a high-viscosity grease to the moving parts, you increase the friction coefficient. This acts like a shock absorber for your stick.
The Secret Sauce: Nyogel 767A
Do not use generic silicone grease. It acts like glue. You need a dedicated Damping Grease. The industry standard is Nyogel 767A. It is extremely thick and sticky, providing that premium "hydraulic" feel found in high-end audio equipment knobs.
- Apply a rice-grain amount to the green/black potentiometer housing.
- Work the stick in circles for 2 minutes to distribute.
- Warning: Too much will make the stick slow to return.
The Software Trap: Deadzones
Many generic guides tell you to "just increase your deadzone." Do not do this.
The Precision Cost
Raising your deadzone from 5% to 15% to hide snapback means you lose the first 15% of your stick's motion range. This makes micro-adjustments impossible. You are trading one problem for a worse one.
When to use it?
Only use software deadzones as a last resort if you cannot solder or access damping grease. It is a band-aid, not a fix.
Which Fix is For You?
| Method | Difficulty | Effectiveness | Side Effects |
|---|---|---|---|
| Capacitor Mod | High (Soldering) | 100% Elimination | Tiny latency increase |
| Damping Grease | Medium (Disassembly) | 80% Reduction | Stiffer stick feel |
| Software Deadzone | Easy (Settings) | Low (Band-aid) | Loss of precision |
Test Your Recoil
Not sure if you have snapback? Open our Lab and perform the "Flick Test." Watch the graph for any spikes crossing the center line.
